NMB Rod End & Spherical Bearings

Rod ends and spherical bearings are used to  connect moving parts in countless machines. These compact joint components allow for smooth pivoting and rotation under load, making them indispensable in applications ranging from aircraft wing flaps and helicopter rotor linkages to train suspension systems and industrial robots. By accommodating misalignment and oscillation, they transfer motion and forces reliably even in challenging environments. NMB rod ends and spherical bearings, in particular, have become critical connection points across industries, valued for their precision and durability in service.

Engineering and Design

NMB Rod end and spherical bearings are engineered as ball-and-socket joints that balance freedom of movement with strength. Their design enables a mechanical linkage to move through multiple angles while supporting substantial loads. Key design features include:

• Spherical inner ring and outer race: At the core is a spherical plain bearing – an inner ring with a convex spherical exterior that mates with a concave spherical interior of the outer ring. This allows the inner ring (often called the ball) to rotate and pivot within the outer ring, permitting angular motion in multiple directions. It behaves much like a human joint, ensuring smooth articulation even under misalignment.

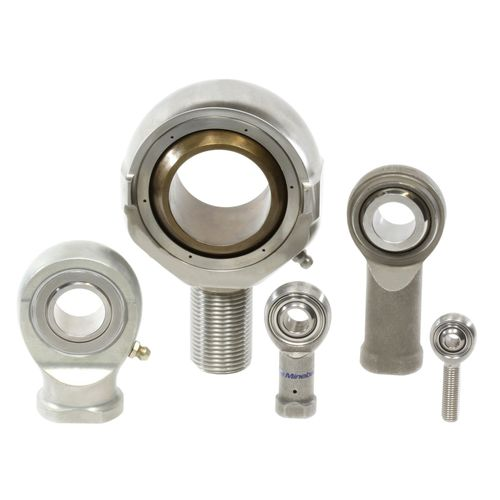

• Rod end housing: In an NMB rod end bearing (also known as a Heim joint or rose joint), the spherical bearing is integrated into an eye-shaped housing with an integral shank. The housing often has a threaded shaft (male thread on the shank or a female threaded bore) so it can be easily mounted to a rod or structural member. This design makes rod ends convenient for connecting control linkages and tie rods – the threaded shank allows simple attachment and adjustment in a mechanism.

• Self-lubricating liner: Many of NMB”s spherical bearings feature a PTFE-based self-lubricating liner bonded to the inside of the outer ring. This thin Teflon® or polymer liner provides a low-friction interface between the ball and race, eliminating metal-on-metal contact. The liner continuously lubricates the sliding surface as the joint moves, which means the bearing can operate maintenance-free without periodic greasing. Self-lubricating (dry) bearings are especially prized in aerospace and robotics because they reduce maintenance needs and perform reliably across temperature extremes.
• Optional grease provisions: Some heavy-duty or legacy designs use metal-to-metal spherical interfaces that require lubrication. For such applications, rod end bearings can include grease grooves or zerk fittings in the housing to allow periodic re-greasing. This ensures the joint remains smooth under high loads. Engineers can choose either maintenance-free (lined) bearings or greaseable designs depending on performance requirements and operating conditions.

• Load handling and misalignment: Rod end and spherical bearings are built to handle high radial loads (forces perpendicular to the shaft) while also tolerating axial loads and bending moments due to misalignment. The spherical interface distributes forces over a broad area, giving these joints a high load capacity relative to their size. They can oscillate or rotate through a certain angular range (misalignment angle) without binding. This capability is crucial in applications like aircraft control linkages or industrial actuators, where the alignment between parts may shift under motion or structural flex. The robust construction – often high-strength alloy steels with heat treatment or stainless steel with coatings – ensures the bearings maintain integrity under shock, vibration, and continuous cycling.


Certified Quality and Global Aerospace Readiness

NMB’s  rod end and spherical bearings are qualified to meet some of the most stringent quality standards in the aerospace industry. They are manufactured in accordance with U.S. military specifications (MIL standards) for airframe bearings, and the company has obtained certifications and approvals from major aircraft OEMs in Japan, the U.S., and Europe (including Boeing and Airbus). This means the bearings have proven their exceptional durability and performance consistency under extreme conditions – from high-frequency vibrations and heavy loads to wide temperature swings and pressure changes at altitude. Every aerospace-grade bearing undergoes rigorous testing for factors like wear, strength, and dimensional precision to ensure it will perform flawlessly in critical flight applications.

To support global aerospace programs, NMB produces these bearings in multiple world-class facilities across Japan, North America, and Europe. Key production centers in Japan, Thailand, the United States, and the U.K. allow the company to respond quickly to customer needs and maintain a robust supply chain on three continents. This global manufacturing footprint not only shortens lead times for regional customers but also builds in redundancy and capacity to meet large-scale demand. Importantly, all factories operate under unified quality control systems and process standards, so a rod end bearing made in the U.S. or in Japan will meet the same specifications and high quality benchmarks.

Manufacturing excellence at NMB includes meticulous process control and full traceability of each part produced. From raw material lot certification to machining, heat treatment, plating, and assembly, every step is documented. Each bearing can be traced back to its production batch and material source – a crucial factor for aerospace traceability requirements and overall accountability. This attention to detail gives engineers and safety regulators confidence that every bearing delivered is consistent and reliable. MinebeaMitsumi’s decades of experience (producing bearings since 1968) and continuous improvement culture further ensure that their rod end and spherical bearings set the benchmark for quality. It’s no surprise that NMB is recognized as a world leader in this product category – the company is, in fact, one of the largest global manufacturers of spherical bearings and rod ends (with an estimated majority share of the aerospace market), reflecting the trust placed in its products.

Versatile Applications

One reason rod ends and spherical bearings are so important is their incredible versatility. They appear in a wide range of applications wherever a strong, flexible joint is needed. Some notable application areas include:

• Aircraft & Aerospace: These bearings are extensively used in commercial and military airplanes, spacecraft, and helicopters. For example, they connect wing flap actuators to flaps, join landing gear linkages, serve as engine mount joints, and attach control rods in helicopter rotor heads. Their ability to handle high loads while allowing movement makes them ideal for flight control systems and structural joints that must endure vibration and changing forces.
• Rail & Transportation: In trains and other vehicles, rod end bearings absorb shocks and align forces in suspension systems and couplings. High-speed rail cars use spherical bearings in their bogies (wheel assemblies) to allow safe tilt and turning. Automotive and heavy machinery also employ rod ends in steering linkages and suspension components – even Formula 1 race cars use precision rod end bearings in their pushrod suspensions for optimal strength and articulation.
• Robotics & Automation: Industrial robots and automated machinery rely on rod end and spherical bearings at pivot points and actuator ends. A robotic arm, for instance, may use spherical bearings in each joint to allow smooth multi-axis movement of the arm segments. Industrial actuators like pneumatic or hydraulic cylinders often have rod end bearings at the attachment point so the cylinder can move freely as it extends and retracts. The low friction and tight tolerance of these bearings help robots achieve repeatable, precise motion in assembly lines, material handling systems, and even humanoid robots.
• Machine Tools & Manufacturing Equipment: Precision machines such as CNC machining centers, presses, and packaging equipment use spherical bearings to accommodate alignment changes and vibration. For example, a machine tool spindle head or a pressing arm might be mounted with spherical bearings to allow slight flexibility and reduce stress under load. These joints improve the longevity and accuracy of equipment by handling misalignment that inevitably occurs during heavy operation.
• Motion Platforms & Simulators: Multi-axis motion platforms – like flight simulators, vehicle test rigs, or amusement rides – utilize rod end bearings to connect hydraulic or electromechanical actuators to the moving platform. Each actuator attaches via a rod end at both ends, allowing the platform to tilt and pivot smoothly as the actuators lengthen or shorten. The spherical bearings in those rod ends bear the dynamic loads and ensure synchronized movement without binding. Similarly, gimbals and camera platforms use small spherical bearings for stable, pivoting motion.


In all these examples, rod end and spherical bearings provide a reliable joint that can swivel, align, and carry load. Their presence might not be obvious, but they are fundamental to the safe and efficient motion of the system.

Conclusion

NMB’s rod end and spherical bearings exemplify reliability and engineering excellence. From aerospace cockpits to factory floors, these high-precision joints have proven themselves in critical roles, enabling motion with confidence under the harshest conditions. Backed by a global manufacturing network and rigorous quality control, MinebeaMitsumi ensures that engineers around the world have access to bearings they can trust for performance and longevity.

Pacific International Bearing Sales (PIB) is proud to partner with MinebeaMitsumi  and NMB to supply NMB rod ends and NMB spherical bearings to engineers and manufacturers globally. PIB offers expert guidance in selecting the right bearing for your application and maintains a robust inventory to keep your projects on schedule. Contact us at [email protected] to discuss your specific requirements, request a quote, or get technical support for integrating NMB bearings into your design. With PIB’s responsive service and NMB’s proven quality, you can build your next project on a foundation of engineering trust and excellence.

FAQ

Q: What is the difference between a spherical bearing and a rod end bearing?
A: A spherical bearing (also called a spherical plain bearing or joint bearing) is the core articulating component consisting of an inner ring and outer ring that form a ball-and-socket joint. A rod end bearing incorporates that spherical bearing into a housing with a shaft or threaded hole, making it easy to mount at the end of a rod or link. In other words, a rod end is a ready-to-use unit (sometimes called a Heim joint) that you can screw onto a linkage, whereas a spherical bearing on its own is usually pressed into a housing or machinery frame. Both serve the same function of allowing angular movement, but rod ends come with an integrated mounting feature.

Q: What is a self-lubricating liner in these bearings?
A: A self-lubricating liner is a thin layer of PTFE-based composite material bonded to the inside of the bearing’s outer ring. NMB uses these liners in many rod end and spherical bearings to create a maintenance-free sliding surface between the ball and race. The PTFE liner constantly provides lubrication as the joint moves, so no grease is needed during the bearing’s service life. This not only reduces maintenance work but also improves performance – the liner reduces friction and wear, especially during small oscillating motions. Self-lubricating liners are particularly useful in aerospace and other applications where regular re-greasing is impractical.

Q: What are typical failure modes for rod end and spherical bearings?
A: Over time and heavy use, rod end and spherical bearings can wear out or lose tolerance. A common failure mode in lined (self-lubricating) bearings is liner wear – the PTFE liner can eventually wear through, leading to metal-on-metal contact and looseness in the joint. In metal-to-metal designs, surface wear or brinelling (indentation) can occur on the ball or race if loads exceed the bearing’s capacity, causing play or binding. Other potential failures include fatigue cracking of the housing or ball under repeated high stress, and corrosion if the bearing is not properly protected for the environment. To prevent failures, it’s important to use the bearing within its load ratings, follow the manufacturer’s guidelines for lubrication (if applicable), and periodically inspect the joint for signs of wear or play. High-quality bearings like NMB’s are built to minimize these failure modes – for example, using corrosion-resistant materials and tested liner technologies to achieve a long service life even under punishing conditions.

Q: What should I consider when mounting a rod end or spherical bearing?
A: Proper installation ensures the bearing performs as intended. When mounting a rod end, make sure the threaded shank is securely fastened (often with jam nuts) and aligned so that the joint is in neutral position at rest. The bearing’s housing or shank should not be subjected to twisting or bending loads – it should only carry tension/compression and pivot freely in the direction of motion. For spherical bearings that press into a housing, ensure the housing bore is of the correct size and tolerances as specified, and insert the bearing squarely without deforming it. It’s also important to respect the bearing’s misalignment angle: use any spacers or misalignment washers provided to prevent the joint from hitting its housing at extreme angles. Finally, if the bearing has a grease fitting, orient it in an accessible position and apply the recommended grease during assembly. By following the manufacturer’s mounting guidelines and using the right tools (like a press for installation and a torque wrench for rod ends), you will avoid inducing stress on the bearing and ensure smooth operation.
