Precision Machined Parts for Aircraft

Pacific International Bearing Sales (PIB) is a leading distributor of aerospace-grade components and precision bearings. In partnership with MinebeaMitsumi – a world-renowned manufacturer of ultra-precision parts – PIB offers a full range of precision-machined parts for aircraft. These components are engineered to meet the strict demands of modern aviation, delivering high performance and reliability for critical applications. As an authorized MinebeaMitsumi distributor, PIB provides technical support, local inventory, and engineering expertise to help aerospace manufacturers integrate these advanced parts with confidence.

Technical Benefits and Features

MinebeaMitsumi precision-machined parts are designed from the ground up for aerospace performance. Built by combining in-house NMB and NHBB-manufactured bearings with custom-machined housings and hardware, these assemblies offer significant advantages in aircraft design and maintenance. Below are some of the key benefits and features that set these precision parts apart:

• Aerospace-Grade Quality & Certification: All components are produced to stringent aerospace standards. MinebeaMitsumi parts meet or exceed U.S. MIL specifications and are approved by major aircraft manufacturers (including Boeing and Airbus). This means they pass rigorous testing for durability, load capacity, and environmental resistance. Each part is manufactured under AS9100-certified quality systems, ensuring traceability and consistent quality for safety-critical uses.

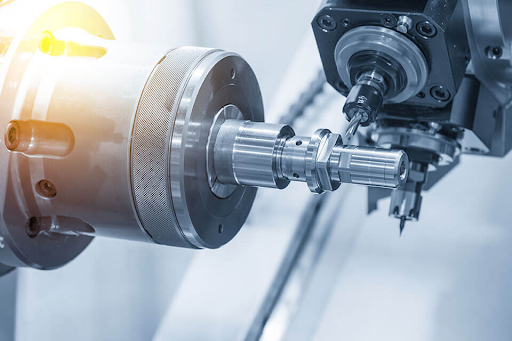

• Ultra-Precision Manufacturing: MinebeaMitsumi’s vertically integrated production process results in extremely tight tolerances and impeccable finish quality. Precision machining and grinding techniques honed over decades allow these parts to achieve micron-level accuracy. The result is a perfect fit and alignment when the parts are installed, which is vital for maintaining aircraft structural integrity and smooth mechanical operation.

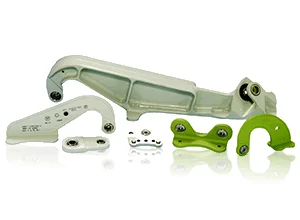

• Integrated Design for Efficiency: A hallmark of MinebeaMitsumi’s aircraft parts is that they often arrive as pre-assembled units (sometimes called “next-up assemblies”) that combine bearings and mating components. By delivering a complete assembly (for example, a spherical bearing already housed in its fitting or a bearing-and-bracket joint), assembly time and cost are greatly reduced for aircraft manufacturers. Engineers don’t need to individually source and fit multiple pieces – the integrated part ensures optimal fit, reducing the chance of misalignment and streamlining the build process.

• Exceptional Durability in Extreme Conditions: Aerospace environments are demanding – components face extreme temperature swings, pressure changes at altitude, high vibration, and heavy loads. MinebeaMitsumi’s precision parts are built to thrive under these conditions. They maintain consistent performance from sub-zero temperatures to high heat (often a range of about –65 °F to +325 °F, depending on the part). They are corrosion-resistant and fatigue-tested for long service life. Whether in the frigid cold of high altitude or near hot engine cores, these parts deliver reliable operation without degradation.

• Self-Lubricating and Low-Friction Performance: Many precision NMB and NHBB bearing components under the umbrella company MinebeaMitsumi feature advanced self-lubricating liners (such as PTFE-based liners inside spherical bearings and bushings). These liners provide a low-friction interface between moving parts, eliminating the need for regular greasing. The benefit is maintenance-free performance over thousands of cycles – a crucial advantage for reducing maintenance downtime in aviation. Additionally, certain specialized designs (like NHBB aircraft roller bearings) offer low starting torque, meaning they overcome static friction easily. This is important in flight control systems where smooth, immediate movement can enhance control responsiveness.

• Global Manufacturing with Local Support: MinebeaMitsumi produces its aerospace machined parts in state-of-the-art facilities, primarily in Japan (such as the Karuizawa plant dedicated to aerospace components), with support from sister divisions in the USA, Thailand, UK, and other countries. This global footprint ensures a robust supply chain and the capacity to meet large volume orders. Through PIB’s local inventory and engineering support, customers get the best of both worlds – Japanese manufacturing quality and convenient local access. Parts are readily available to meet tight production schedules or urgent Aircraft on Ground (AOG) needs.


Aerospace Applications

MinebeaMitsumi’s precision-machined parts are utilized across a wide range of aerospace applications. Essentially, any aircraft assembly that requires a reliable, high-precision joint or moving interface can benefit from these components. Below are some of the prominent areas and examples of how these parts are applied in aircraft:

• Flight Control Surfaces & Actuators: Critical joints in ailerons, flaps, slats, rudders, and elevator systems often use NMB and NHBB rod-end bearings and spherical bearing assemblies. These joints must allow smooth rotation and oscillation of control surfaces with minimal play. Precision parts with self-aligning capability ensure reliable motion in wing flaps or tail control linkages, even under high aerodynamic loads.

• Engine and Propulsion Systems: Engine mounts and linkages rely on precision-machined components to handle high loads and vibration. MinebeaMitsumi parts are found in jet engine assembly joints and thrust vectoring mechanisms, where heat-resistant materials and tight tolerances are mandatory. For example, blisks (bladed disks) or turbine assemblies can incorporate MinebeaMitsumi’s high-precision machining for an exact fit. Additionally, specialized fasteners and connectors from MinebeaMitsumi secure engine and gearbox components, using alloys that withstand engine temperatures and stresses.

• Landing Gear & Suspension: The landing gear of an aircraft, including shock struts, retraction linkages, steering mechanisms, and braking systems, uses robust machined joints. Spherical bushings and roller bearings from NMB and NHBB are commonly used in landing gear articulation points to allow smooth strut compression and wheel steering under heavy loads. These parts endure repeated takeoff and landing cycles, absorbing impact and ensuring alignment of moving parts. The self-lubricating bushings (with Teflon liners) in landing gear pivot points provide long-lasting performance without needing frequent relubrication, even in dirty or wet conditions.

• Door Hinges and Access Panels: Aircraft have numerous doors (cargo bay doors, landing gear doors, service panels, etc.), and each hinge or latching mechanism can benefit from precision-machined components. MinebeaMitsumi’s NMB’s small ball bearings and machined hinges are used in hatches and access panels to guarantee easy operation and secure locking. The precision ensures doors open and close smoothly and can lock tightly to maintain fuselage pressurization when needed.

• Auxiliary Systems & Interiors: Beyond the airframe and engines, there are many other subsystems where precision parts are employed. Hydraulic actuators, fuel system controls (like variable bleed valves or fuel nozzle assemblies), and even moving components in passenger seating or cargo handling equipment utilize machined parts for dependable function. MinebeaMitsumi’s expertise in miniaturization means even compact mechanisms (such as those in avionics, radar systems, or satellite communication equipment on the aircraft) can have custom-machined micro components with extremely high precision.


This is not an exhaustive list, but it illustrates the versatility of MinebeaMitsumi’s aerospace parts. From the nose to the tail of the aircraft – whether in structural joints, control linkages, or engine components – these precision-machined parts play a pivotal role in keeping aircraft systems running safely and efficiently. Aerospace engineers choose these parts for their proven reliability under the most demanding conditions.

Specifications (MinebeaMitsumi Standards)

The table below highlights key technical specifications and standards compliance for MinebeaMitsumi precision-machined parts used in aircraft. (Note: Actual values may vary by specific part number or series, but these represent typical standards and capabilities based on MinebeaMitsumi’s aerospace-grade products.)

This specifications overview shows MinebeaMitsumi’s commitment to maintaining the highest standards in its aerospace components. Whether it’s compliance with military and aerospace norms, using top-grade materials, or ensuring precision in manufacturing, every aspect is geared toward delivering parts that aerospace engineers can trust.

FAQ

Q1: What types of precision-machined parts for aircraft does PIB offer from MinebeaMitsumi?
A1: PIB offers the full range of MinebeaMitsumi’s precision-machined aerospace components. This includes rod end bearings, spherical bearings, bushings, roller bearings, and integrated bearing assemblies used in airframes. We also provide specialized fasteners and custom-machined parts such as high-strength bolts, pins, and sub-assemblies that incorporate bearings. Essentially, if MinebeaMitsumi manufactures it for aerospace, PIB can supply it – from miniature control bearings to large structural components.

Q2: How do MinebeaMitsumi’s integrated bearing assemblies benefit an aircraft manufacturer?
A2: Integrated assemblies combine a bearing with its mating parts (like housings, spacers, clevises, etc.) in one ready-to-use unit. The benefit is simplified installation and reduced assembly time. For example, instead of pressing a spherical bearing into a separately machined link, you can get a MinebeaMitsumi unit where the bearing is already precision-fitted in its housing from the factory. This ensures perfect alignment and saves you the effort of assembly and alignment during production. It also reduces the number of part numbers to manage in inventory and minimizes the risk of assembly errors, which in turn cuts costs and improves reliability.

Q3: Are MinebeaMitsumi’s aerospace parts certified or tested to specific standards?
A3: Yes. MinebeaMitsumi’s aerospace-oriented parts are tested and certified to comply with international aerospace standards. Many of their bearings and joints meet MIL standards (Military Specifications) and SAE Aerospace Standards (AS series). Additionally, MinebeaMitsumi has earned certifications and approvals from major aircraft OEMs. For instance, their airframe control bearings are qualified to standards like AS7949 (which covers airframe control ball bearings). Each batch of parts comes with quality documentation, and the manufacturing facilities are AS9100 certified. This means you can confidently use these parts in aerospace projects knowing they have been vetted for airworthiness.

Q4: Can PIB assist with custom or special-order MinebeaMitsumi parts for unique aerospace applications?
A4: Absolutely. One of PIB’s strengths as an authorized distributor is our close collaboration with MinebeaMitsumi’s engineering teams. If your project requires a customized bearing or machined component, PIB will work with you to define the requirements and liaise with MinebeaMitsumi to develop a solution. Whether it’s a slight modification of a standard part or a completely new design, we can facilitate custom designs, special materials, or unique dimensions. Our engineering support team can also help cross-reference and identify the right MinebeaMitsumi part for your needs, ensuring you get an optimal solution even if it’s not a catalog standard item.

Q5: What are the lead times and availability for these precision parts?
A5: Common part numbers (such as standard rod-end bearings, spherical bearings, etc.) are often stocked in PIB’s inventory for immediate shipment. For larger quantities or less common items, lead times will reflect MinebeaMitsumi’s production schedule. Because these parts are made with high precision, manufacturing can take a number of weeks if not readily in stock. However, PIB offers services like Just-In-Time (JIT) delivery and inventory management for our regular customers – meaning we can stock parts for you and deliver on schedule as needed. For urgent requirements, PIB can often tap into MinebeaMitsumi’s global supply network or expedite orders. We understand aerospace timelines (including critical AOG situations) and strive to provide the fastest possible delivery without compromising quality.

Q6: Do MinebeaMitsumi’s self-lubricating bearings really require no maintenance?
A6: That’s correct – bearings with self-lubricating liners (typically a PTFE-based liner bonded to the bearing’s inner diameter) are designed for maintenance-free service. This is a huge advantage in aircraft, where re-greasing points are undesirable. The liner continually provides low friction during motion and can last for tens of thousands of cycles (or many years of operation) under normal loads. It’s important to use these parts within their design load and motion limits – excessive loads or rotations beyond design could wear out the liner faster. But in standard use (for example, a control surface hinge that oscillates within a limited range), the self-lubricating bearing will not need periodic lubrication. This reduces maintenance labor and the risk of lubricant contamination. Of course, during regular aircraft inspections, technicians will still check the joints for play or wear as a safety precaution, but under proper use, these parts are essentially fit-and-forget.

Q7: How can I find or purchase the right MinebeaMitsumi precision part for my aircraft project?
A7: PIB makes it easy to find and purchase the components you need. You can browse our online catalog on the PIB website, which lists a wide range of MinebeaMitsumi products, complete with specifications and part numbers. Use the search and filtering tools to locate bearings or parts by type, size, or standard. If you already have a known part number (either MinebeaMitsumi’s part code or an industry standard number), you can search for that directly. For any questions or if you need guidance, you can reach out to our technical sales team via phone or email – we’re here to help ensure you get exactly the right part. Once you’ve identified the parts, you can conveniently request a quote or place an order through the online system or by contacting PIB’s sales representatives. We support everything from prototype-quantity orders to high-volume production orders.

Conclusion

MinebeaMitsumi’s precision-machined parts for aircraft represent the pinnacle of engineering quality in the aerospace industry. They offer a blend of precision, durability, and efficiency that can improve aircraft assembly and performance. By partnering with PIB, aerospace engineers and procurement specialists gain a trusted ally to navigate these advanced product offerings – from selection and customization to inventory management and support.

Ready to elevate your aircraft designs with proven precision components? Explore PIB’s online catalog to discover the range of MinebeaMitsumi aerospace parts available. Our catalog provides detailed specs and allows you to compare products easily. If you have specific questions or need expert advice, contact PIB at [email protected]
