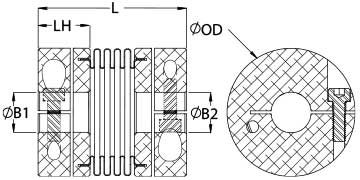

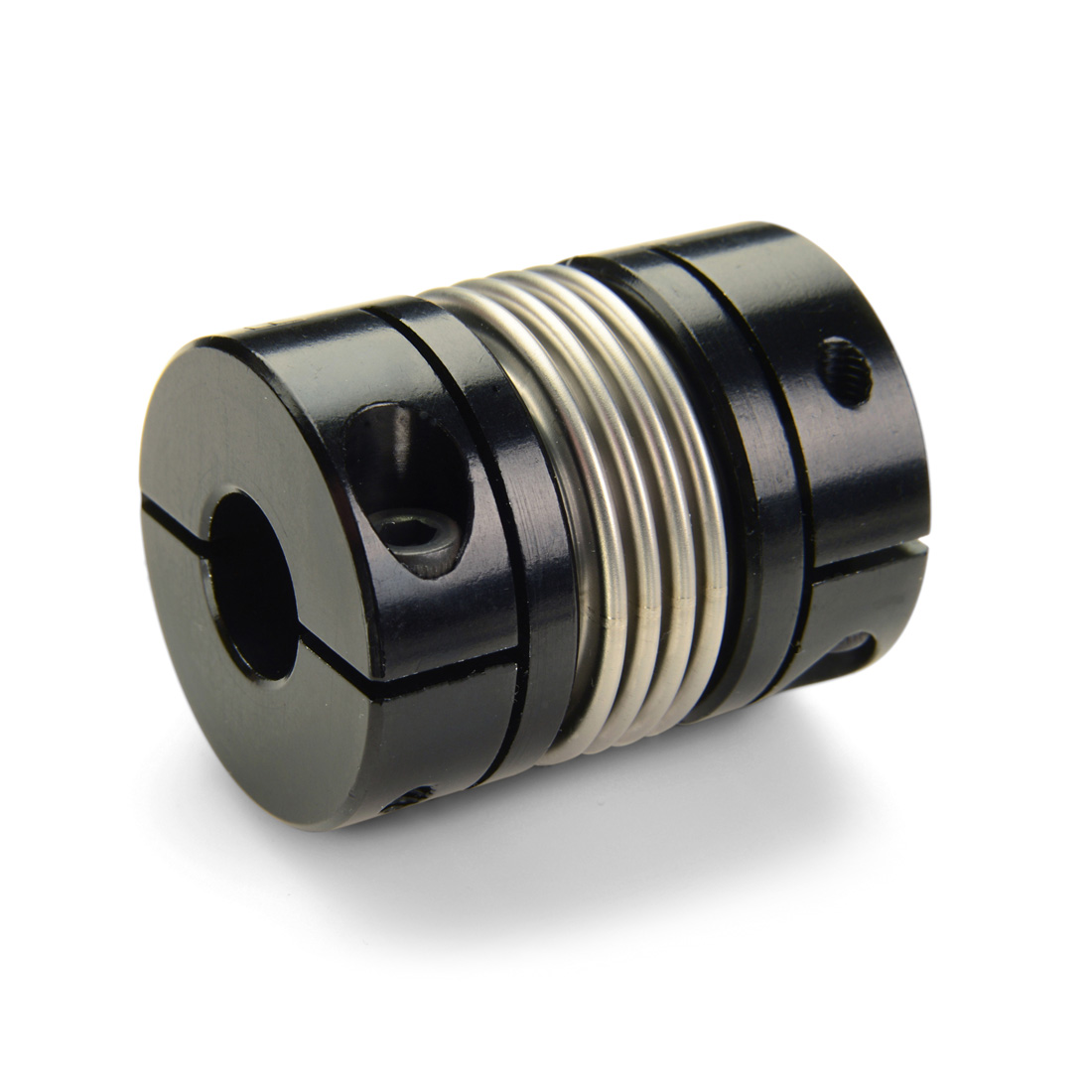

BC44-38MM-1″-A
Manufacturer
Ruland
Description
38mm X 1" Bores
2.750" (69.9 Mm) Od, 3.431" (87.1 Mm) Length
Bellows Coupling
High Stiffness
Aluminum
2.750" (69.9 Mm) Od, 3.431" (87.1 Mm) Length
Bellows Coupling
High Stiffness
Aluminum
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Maximum Speed
10000 RPM
Zero-Backlash?
Yes
Balanced Design
Yes
UNSPC
31163018
Cap Screw
M8
Static Torque
925 lb-in (104.5 Nm)
Dynamic Torque Non-Reversing
462.5 lb-in (52.25 Nm)
Temperature
-40°F to 200°F (-40°C to 93°C)
Angular Misalignment
2.0 deg
Torsional Stiffness
2100 lb-in/Deg (237 Nm/Deg)
Parallel Misalignment
0.012 in (0.30 mm)
Axial Motion
0.030 in (0.76 mm)
Bellows Attachment Method
Epoxy
Length Tolerance
+/- 0.030 in (0.76 mm)
Recommended Hex Key
Metric Hex Keys
B1 Min Shaft Penetration
0.750 in (19.1 mm)
Product Group
Bellows Coupling Standard Length
Shaft Tolerance
+0.0000 in / -0.0005 in +0.000 mm / -0.013 mm
Dynamic Torque Reversing
231.3 lb-in (26.13 Nm)
Hex Wrench Size
6.0 mm
Screw Finish
Black Oxide
Material
Aluminum
Bore (B1)
38 mm
Bore (B2)
1.0000 in
Keyway
No
B1 Max Shaft Penetration
1.582 in (40.2 mm)
B2 Max Shaft Penetration
1.582 in (40.2 mm)
Screw Material
Alloy Steel
Bore Tolerance
+0.001 in / -0.000 in (+0.03 mm / -0.00 mm)
Length (L)
3.431 in (87.1 mm)
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Number of Screws
2 ea
Seating Torque
39 Nm
O.D. (D)
2.750 in (69.9 mm)
B2 Min Shaft Penetration
0.750 in (19.1 mm)
