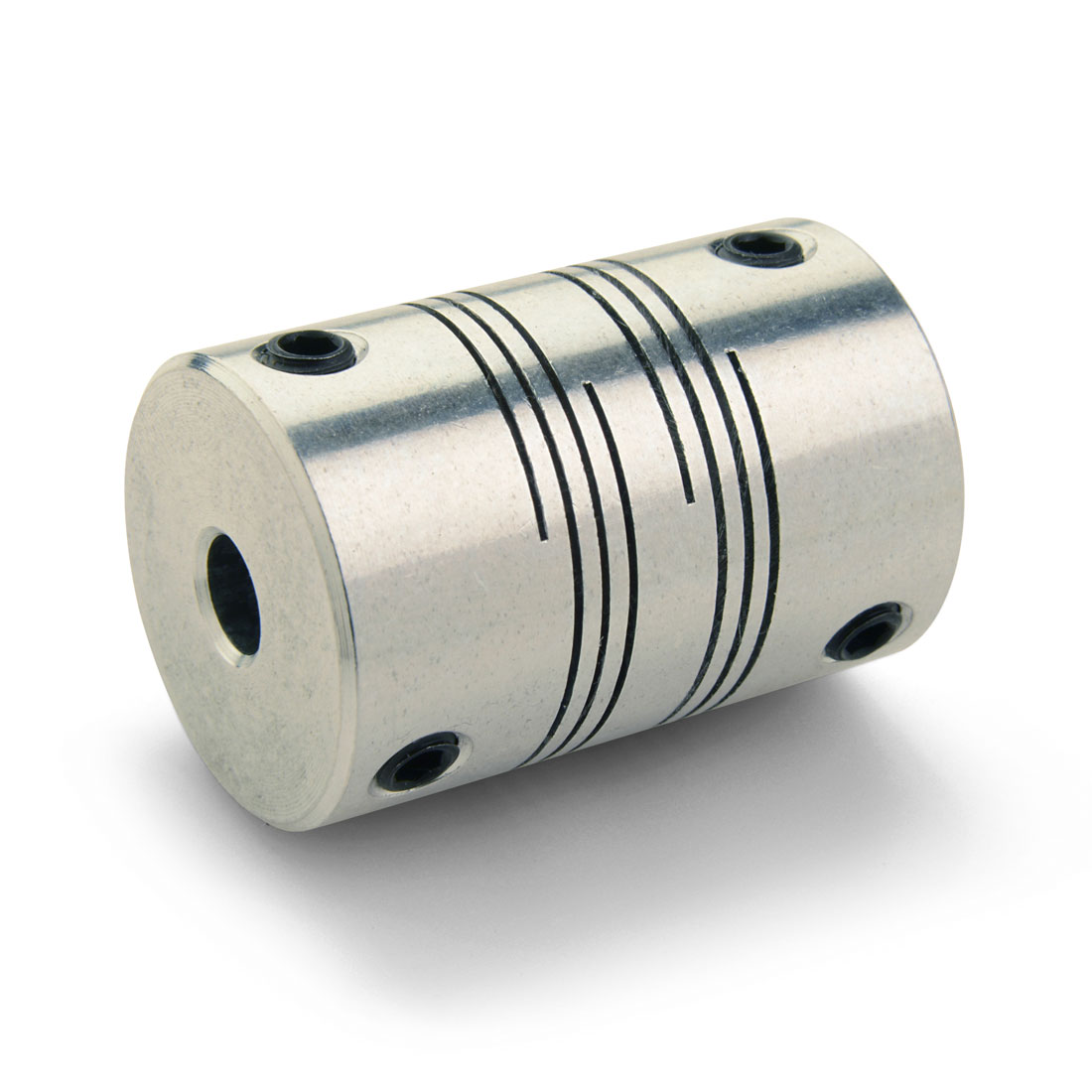

FSMR38-14-13-A
Manufacturer
Ruland
Description
14mm X 13mm Bores
38.1mm Od 57.2mm Length
Six Beam Coupling
Aluminum Set Screw Style
38.1mm Od 57.2mm Length
Six Beam Coupling
Aluminum Set Screw Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
Forged Set Screw
M6
Maximum Speed
6000 RPM
Temperature
-40°F to 225°F (-40°C to 107°C)
Country of Origin
USA
Product Group
F-Series Six Beam Coupling
Shaft Tolerance
+0.000 mm / -0.013 mm
Zero-Backlash?
Yes
UNSPC
31163003
Seating Torque
7.2 Nm
Static Torque
12.43 Nm
Dynamic Torque Non-Reversing
6.22 Nm
Dynamic Torque Reversing
3.11 Nm
Torsional Stiffness
0.24 Deg/Nm
Angular Misalignment
3.0 deg
Parallel Misalignment
0.76 mm
Hex Wrench Size
3.0 mm
Number of Screws
4 ea

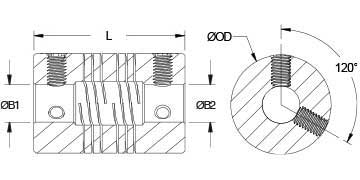

Length (L)
2.250 in (57.2 mm)
B2 Max Shaft Penetration
27.3 mm
O.D. (D)
1.500 in (38.1 mm)
Material
Aluminum
Bore (B1)
14 mm
Bore (B2)
13 mm
Keyway
No
B1 Max Shaft Penetration
27.3 mm
Bore Tolerance
+0.025 mm / -0.000 mm
Tariff Code
8483.60.8000
Screw Material
Alloy Steel
Screw Finish
Black Oxide
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Axial Motion
0.38 mm
