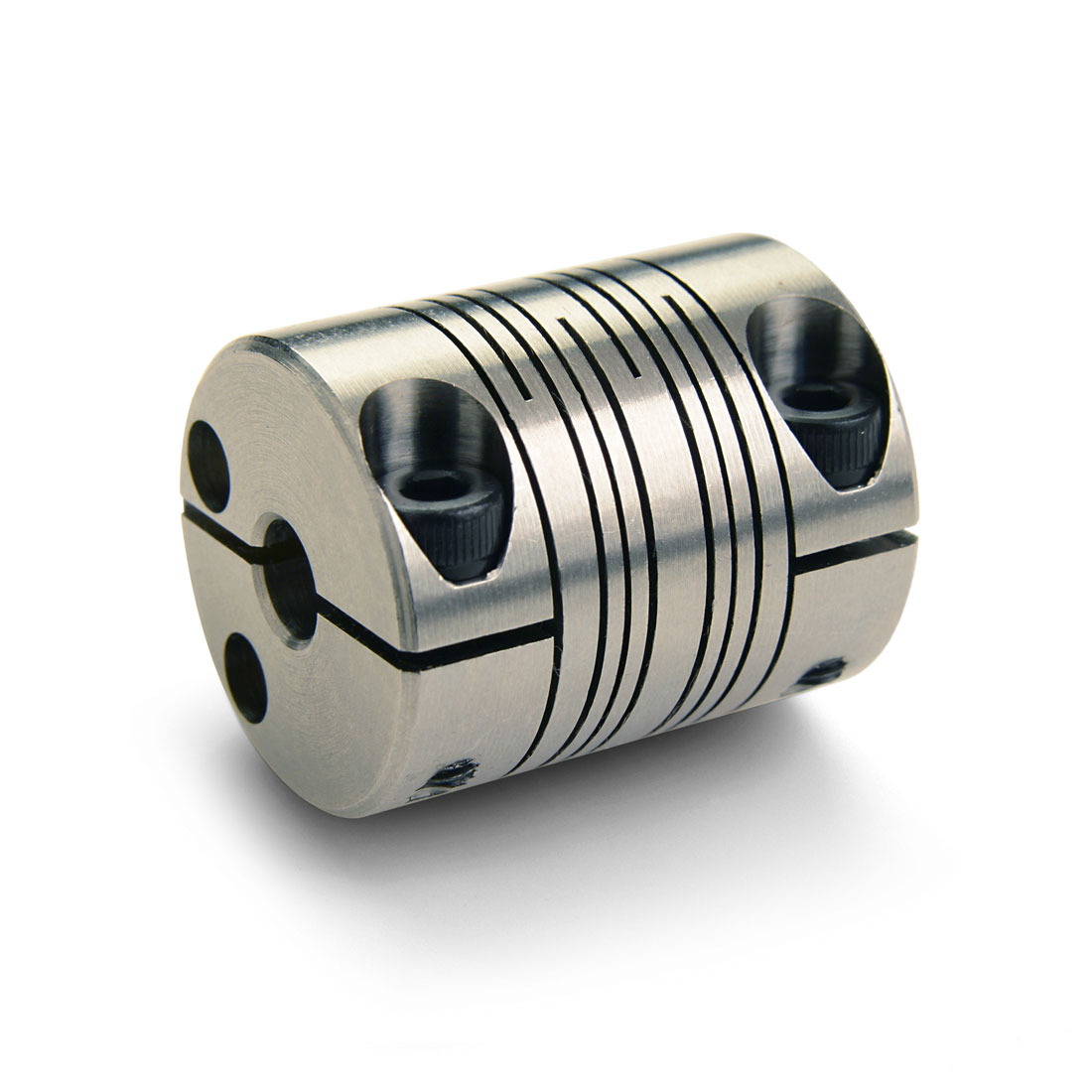

PCMR16-4-3-SS
Manufacturer
Ruland
Description
4mm X 3mm Bores
15.9mm Od, 20.3mm Length
Four Beam Coupling
Stainless Steel Clamp Style
15.9mm Od, 20.3mm Length
Four Beam Coupling
Stainless Steel Clamp Style
Still have other questions?
Please contact our sales managers or request a call they are ready to solve any of your questions.
(800) 228-8895 Request a callSpecifications
Brand
Ruland
UNSPC
31163003
Temperature
-40°F to 350°F (-40°C to 176°C)
Country of Origin
USA
Product Group
P-Series 4 Beam Couplings Clamp
Shaft Tolerance
+0.000 mm / -0.013 mm
Zero-Backlash?
Yes
Balanced Design
Yes
Cap Screw
M2
Hex Wrench Size
1.5 mm
Static Torque
1.81 Nm
Dynamic Torque Non-Reversing
0.91 Nm
Dynamic Torque Reversing
0.45 Nm
Torsional Stiffness
2.53 Deg/Nm
Angular Misalignment
3.0 deg
Parallel Misalignment
0.20 mm
Maximum Speed
6000 RPM
Seating Torque
0.6 Nm

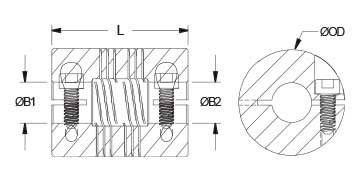

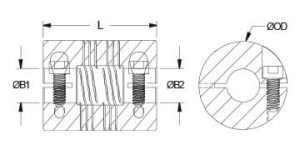

O.D. (D)
0.625 in (15.9 mm)
Bore Tolerance
+0.025 mm / -0.000 mm
Material
303 Stainless Steel
Bore (B1)
4 mm
Bore (B2)
3 mm
Keyway
No
B1 Max Shaft Penetration
9.6 mm
B2 Max Shaft Penetration
9.6 mm
Screw Material
Alloy Steel
Number of Screws
2 ea
Screw Finish
Black Oxide
ISO 9001:2015
Certified
REACH
Compliant
RoHS3
Compliant
Conflict Minerals
Compliant
Tariff Code
8483.60.8000
Axial Motion
0.13 mm
